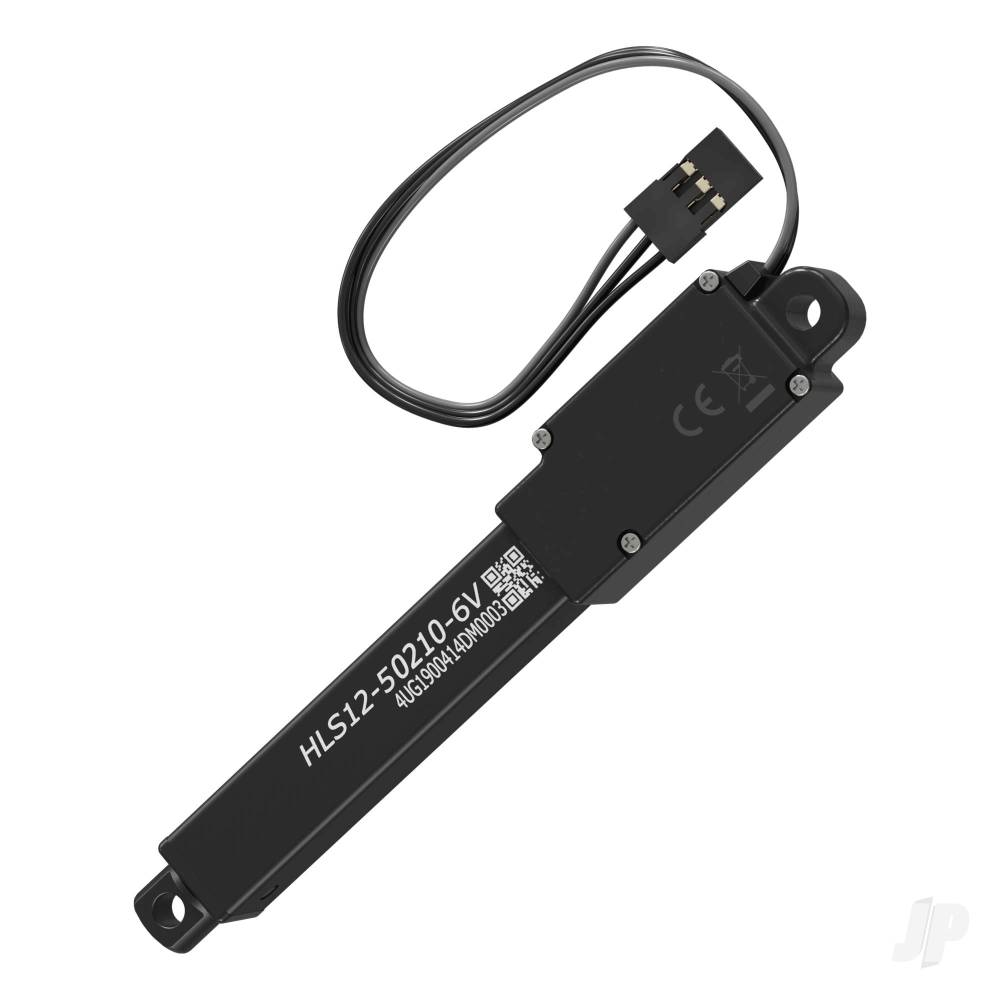

With 50mm of travel and a 210:1 gear ratio, the HLS12-50210 is ideal for medium stroke applications requiring higher power.
Key Features
Command Protocol: PWM
Lead Screw: 5mm
Motor Type: Cored Metal Brush
Operating Voltage (Volts DC): 4.0V ~ 8.4V
Testing Voltage: 6.0V
Gear Ratio: 210:1
No Load Speed: 6.1mm/s
No Load Current: 100mA
Maximum Efficiency Point: Load (kg / N): 3.6 / 35 - Speed (mm/s): 13.0 - Current (mA): 200
Pear Power Point: Load (kg / N): 6.2 / 61 - Speed (mm/s): 3.2 - Current (mA):310
Max Force (Lifted): Load (kg /N): 8.0 / 79 - Speed (mm/s): 2.3 - Current (mA): 400
Stall Force: 5.0kgf (49.03N)
Stall Current: 500mA
Max Static Force: 20.39kgf (200N) (above)
Stroke SPEC: 50mm
Repeatability: ±0.3mm
Max Side Load (Extended): 3.06kgf (30N)
Outline Dimensions: 102.0 x 15.0 x 18.0mm (4.02 x 0.59 x 0.71 in.)
Weight: 40g (1.41 oz)
Connector Wire Length: 160mm (6.29 in.)
Connector Wire Gauge: 24AWG
Bearing Type: Flange bearing
Case Material: Engineering Plastic & Aluminium Pipe
Gear Material: 4 Metal Gears
IP Rating: IP4X
Servo Amplifier Type: 32bit programmable Digital
Shipping
This product will be ordered from the manufacturer and will be shipped to you when received at our local distribution centre. Once we have received the product and shipped to you, you will receive tracking information from the carrier. It may take up to 5 working days for the product to arrive at our local distribution centre.
With 50mm of travel and a 210:1 gear ratio, the HLS12-50210 is ideal for medium stroke applications requiring higher power.
Controlled using a traditional PWM servo signal, Hitec linear actuators provide optimised motion control for precise and powerful positioning. Whether your application demands a low-profile form factor, or extended linear throws, we have an actuator to suit your needs. Our linear actuators are popular for a myriad of uses including robotics and animatronics, as well as industrial mechanical applications. Programmable stroke and speed settings, power-off position stability, and a variety of mounting options, provide additional functionality and flexibility. Additionally, Hitec linear actuators provide full excursion using a 1050 - 1950µs input range. This feature allows fully compatible use with all radios, by eliminating the requirement for programming extended rates to achieve full motion.
